| Place of Origin: | Dongguan,China |
| ชื่อแบรนด์: | HYD |
| ได้รับการรับรอง: | CE / IS09001 |
| Model Number: | HYD-20T-3A |
| Minimum Order Quantity: | 1 Set |
|---|---|
| ราคา: | สามารถต่อรองได้ |
| Packaging Details: | Standard Seaworthy Plywood Case |
| Delivery Time: | 15 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 sets one week |
| Wire Diameter: | 0.2-2.3mm | Axis: | Three to Four Axes |
|---|---|---|---|
| Delivery date: | 15 days | CNC system: | Automatic |
| Decoiler: | 100KG | Cutting tool: | Standard |
| Additional Tool: | Spinner | ||
| เน้น: | 380V torsion spring machine,high-speed cam computer spring machine,2.3mm max thickness spring machine |
||
| Attribute | Value |
|---|---|
| Wire Diameter | 0.2-2.3mm |
| Axis | Three to Four Axes |
| Delivery date | 15 days |
| CNC system | Automatic |
| Decoiler | 100KG |
| Cutting tool | Standard |
| Additional Tool | Spinner |

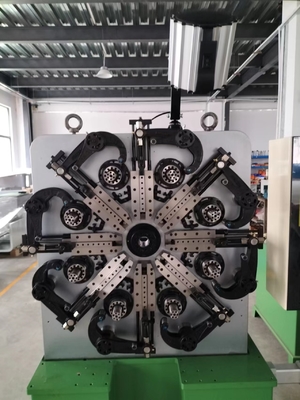

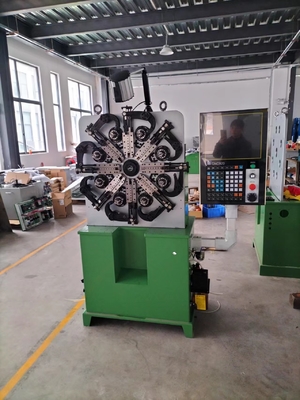

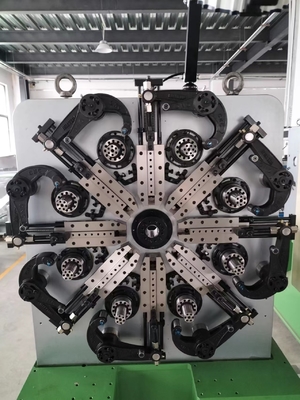

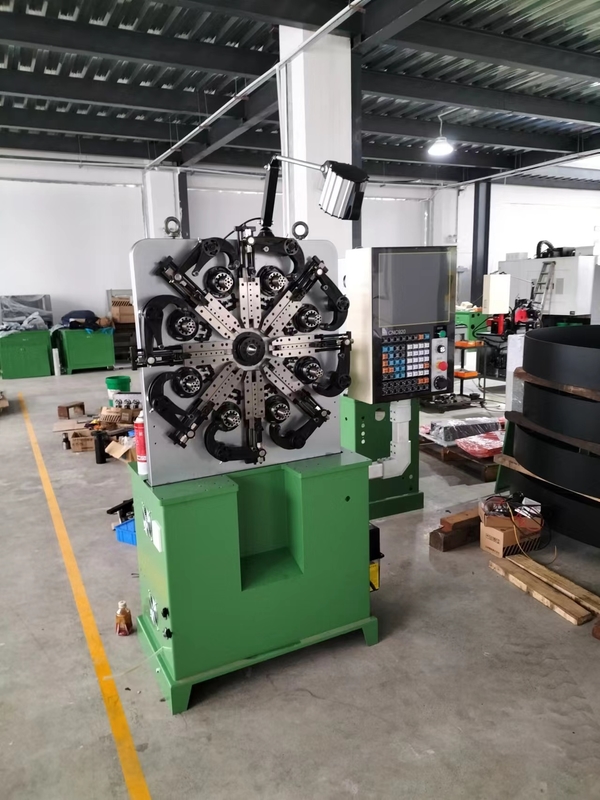

0.2 - 2.3mm Torsion Spring Making Machine with Three to Four Axes
This machine can make tension spring, torsion spring, and many kinds of wire forms. The original model comes with three axes, but we can also customize based on requirements. We have already made machines with four axes, five axes, six axes, ten axes, and twelve axes. Twelve axes models include wire rotation function in the back.
| Wire size | 0.2-2.3mm |
| Max feeding speed | 141m/min |
| Direct storage programs | 1000 |
| X-axis motor output | 2.7KW |
| Y-axis motor output | 2.7KW |
| Z-axis motor output | 1.0KW |
| Machine size | 1400×900×1600mm |
| Voltage | 380V |
| Weight | 700kg |
