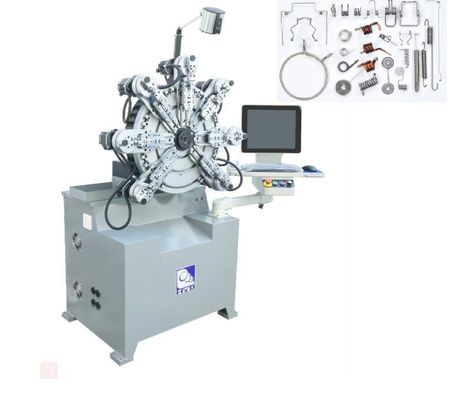

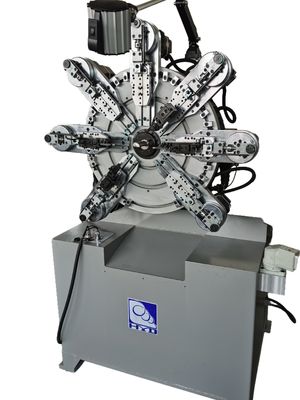

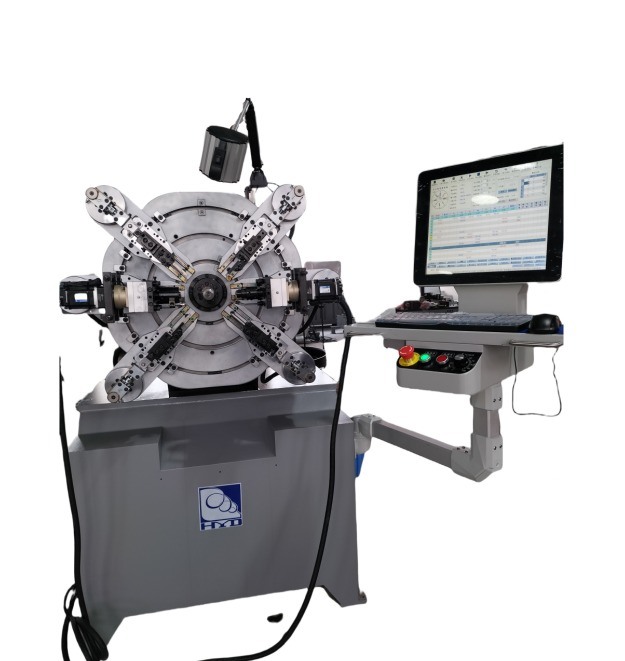

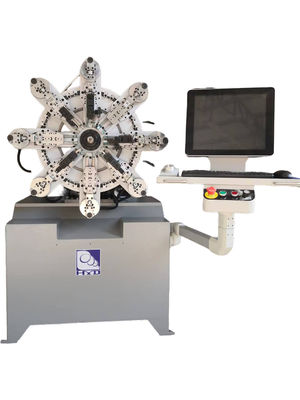

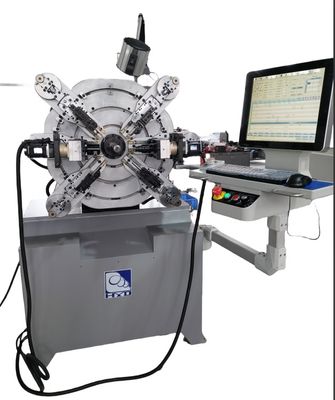

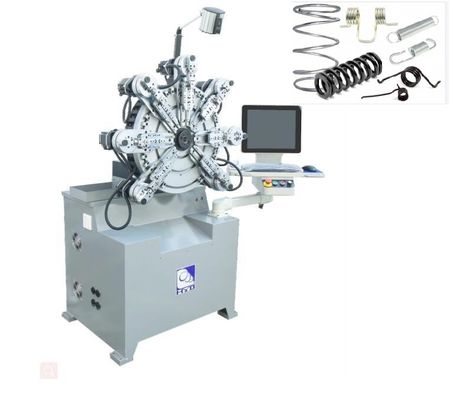

Automatic CNC Spring Machine with 0.3-2.5MM Wire Size 10 Axes Servo Motors and 1 Year Warranty

Automatic CNC Spring Machine with 0.3-2.5MM Wire Size 10 Axes Servo Motors and 1 Year Warranty

  • Automatic CNC Spring Machine with 0.3-2.5MM Wire Size 10 Axes Servo Motors and 1 Year Warranty
  • Automatic CNC Spring Machine with 0.3-2.5MM Wire Size 10 Axes Servo Motors and 1 Year Warranty
  • Automatic CNC Spring Machine with 0.3-2.5MM Wire Size 10 Axes Servo Motors and 1 Year Warranty
  • Automatic CNC Spring Machine with 0.3-2.5MM Wire Size 10 Axes Servo Motors and 1 Year Warranty
  • Automatic CNC Spring Machine with 0.3-2.5MM Wire Size 10 Axes Servo Motors and 1 Year Warranty
  • Automatic CNC Spring Machine with 0.3-2.5MM Wire Size 10 Axes Servo Motors and 1 Year Warranty
Automatic CNC Spring Machine with 0.3-2.5MM Wire Size 10 Axes Servo Motors and 1 Year Warranty
รายละเอียดสินค้า:
สถานที่กำเนิด: กวางตุ้งจีน
ชื่อแบรนด์: HYD
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1
ติดต่อ
รายละเอียดสินค้า
น้ำหนัก: 900 กิโลกรัม แรงดันไฟฟ้า: 380 V
พลัง: 9.35 กิโลกรัม ขนาดลวด: 0.3-2.5 มม
เซอร์โวมอเตอร์: 10 แกน ความเร็วลวดสูงสุด: 110 ม./นาที
การจัดเก็บโปรแกรม: 1,000 รถไฟนำ: 80 มม.
ลูกกลิ้งฟีดลวด: 2 คู่ ข้อผิดพลาดสูงสุด: ± 0.03 (ความยาว)
แบรนด์มอเตอร์: ซันโย ความยาวเทวดาที่สั้นที่สุด: เส้นผ่านศูนย์กลางลวด 4 เท่า
แหล่งจ่ายไฟ: 380V ± 10% V 50Hz ผู้ที่มีความขุ่นมัว: 200 กก.
ขนาดเครื่อง: L1400*W950*H1700 มม
เน้น:

1 Year Warranty CNC Spring Machine

,

OEM Service Automatic Spring Machine

,

0.3-2.5MM Wire Size Computer Spring Machine

Automatic Spring Machine Spring Forming Machine HYD-25T-10A 0.3-2.5MM
Product Description
The HYD-25T-10A/12A is a multi-function computer spring machine designed for precision spring manufacturing with wire sizes ranging from 0.3-2.5mm.
Technical Specifications
Model HYD-25T-10A HYD-25T-12A
Wire Size 0.3-2.5mm 0.3-2.5mm
Servo Motors 10 axes 12 axes
Lead Rail tineraries 80mm tineraries 80mm
Wire Feed Roller 2 Pairs 4 Pairs
Maximum error ±0.03(Length) ±0.03(Length)
MaxWire Feed Speed 110m/min 110m/min
Motor Brand Sanyo Sanyo
Shortest Angel Length 4 Times Wire Diameter 4 Times Wire Diameter
Power Supply 380V±10%V50Hz 380V±10%V50Hz
Decoiler 200KG 500KG
Machine Dimension 900KG 1300KG
Machine Size L1400*W950*H1700MM L1700*W1150*H1700MM
Product Gallery
Frequently Asked Questions
Q1: Can you send me the catalogue?
A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.
Q2: Do you accept OEM?
A2: We can produce any of your requested designs.
Q3: Can it be configured with something else?
A3: Yes, We can customize the machine according to your product requirements.
Q4: Are you a factory?
A4: Sure. We are factory direct sales; welcome to visit our factory.
Q5: What information will be helpful in getting an accurate quotation from us?
A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.
Q6: What is the power supply of the machine?
A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.
Q7: What is the payment term?
A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.
Q8: What is the delivery time?
A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.
Q9: What is the guarantee period of the machine?
A9: The guarantee period is one year from the date of B/L.
Q10: What is the MOQ?
A10: One set. We will make the machine suitable for you according to your needs.
Q11: How can I contact you to place an order?
A11: You can contact us by email or WhatsApp, or by whatever method you prefer.
Q12: What types of products are there?
A12: We have camless spring machines, cam spring machines, compression spring machines, wire bending machines, rotary head machines, etc.
Q13: Do you have CE certification?
A13: Yes, we have CE certificate. Our machines are of good quality and high precision.
Q14: What motor do you use?
A14: We use Japanese Sanyo servo motors. Can also be customized according to your needs.
Q15: What terms do you accept?
A15: We accept FOB, CIF, EXW, etc.
Q16: Do you provide training?
A16: Yes, our engineers can provide machine training services, you can come to our factory to learn, or we can also arrange online guidance.
Q17: Do you offer the service of purchasing accessories separately?
A17: Yes, you can ask us about accessories and provide some corresponding sizes and information.
Q18: What is your packaging like?
A18: We use standard seaworthy wooden boxes to pack our goods.
Q19: How to operate the machine?
A19: Our machines are controlled by computer systems. We will provide user manuals for operating the computer systems. If you have any questions, we will also arrange for engineers to answer them.
Q20: Can your computer system switch the language?
A20: Yes, usually we will set the system to English mode before shipping.
